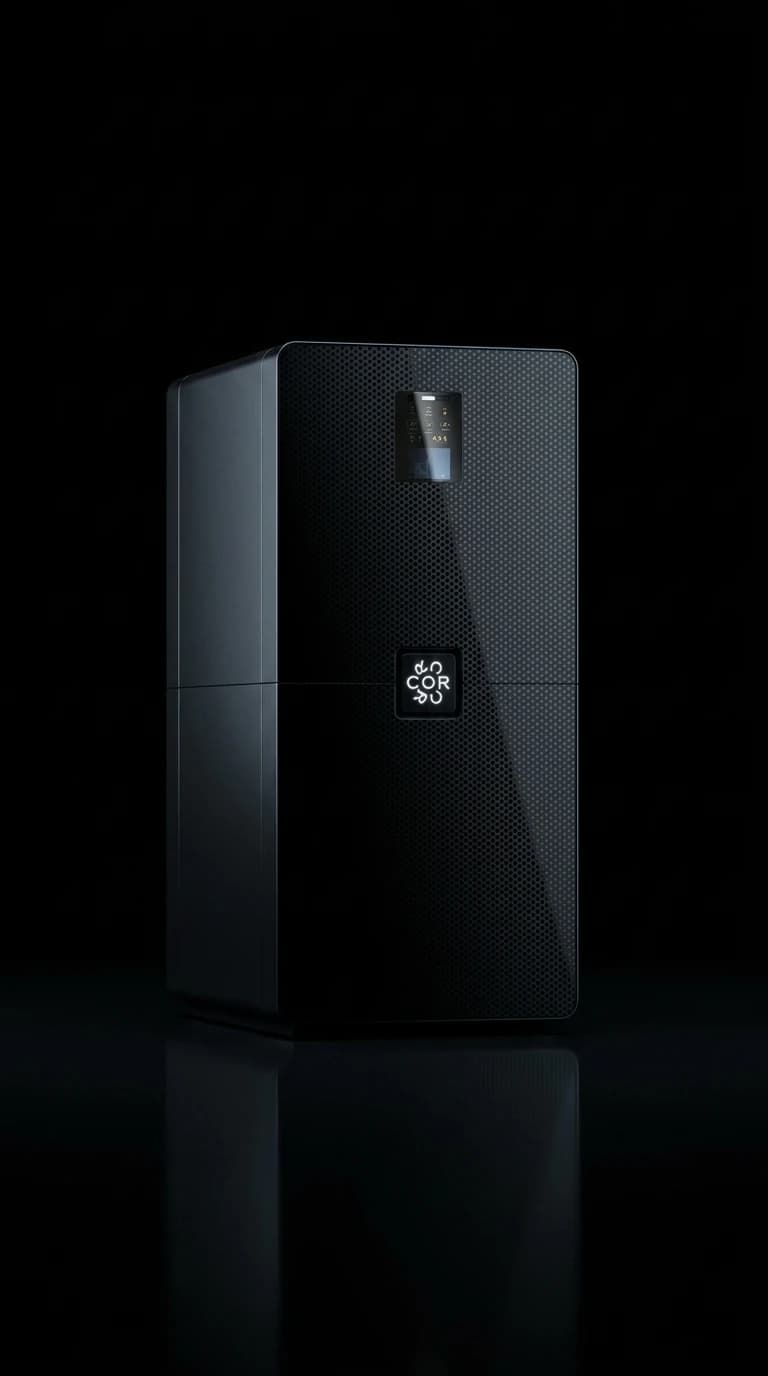

COR.gen TwinPower · type CTP-10-2
The furnace. The heart.
Pellet CHP with sand fluidised bed and two Stirling engines. Available as part of COR.set.
COR.gen is not sold separately — it comes to you as part of COR.set. COR.set →·Blackout-sicher dank COR.stor →
10 kW heat. 2.2 kW power.
3.1 – 10 kW
heat, continuously modulating
0.5 – 2.2 kW
power, up to 2,400 W feed-in
Sand at 800 °C.
Preheated air fluidises a bed of sand in the combustion chamber — pellets burn completely, without temperature spikes or slagging. Power plant technology, for the first time in a single home.
How it works
Two engines. No wear.
Two free-piston linear Stirling converters turn the heat into electricity. Helium-filled, no crankshaft, no lubrication — maintenance-free for life.
Wood pellets class A1.
The day hopper holds 40 kg and is filled automatically via COR.vac. At nominal load COR.gen uses about 2.7 kg per hour — and disposes of the ash itself: the flue-gas scrubber binds it in water, no ash pan at all.
At a glance.
- Dimensions (D × W × H)
- 127 × 92 × 182 cm
- Weight
- approx. 650 kg
- Sound level
- < 60 dB(A)
- Flow temperature
- up to 65 °C
- Standard
- EN 303-5, boiler class 5
